Artwork information 1-2-3 bottom boxes
- free format selection
- Special requirements for creating the artwork:

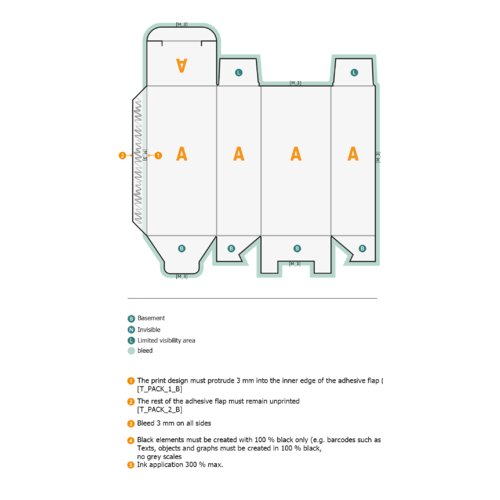

- The print design must protrude 3 mm into the inner edge of the adhesive flap (overfill); the rest of the adhesive flap must remain unprinted.
- Black elements must be created with 100 % black only (e.g. barcodes such as EAN, QR-codes, text etc.)
- Resolution: 300 dpi
- Include a surrounding trim of 3 mm, important information should be at least 4 mm from the edge of the final format size
- Fonts must be completely imbedded or converted to curves
- colour mode: CMYK, FOGRA51 (PSO coated v3) for coated paper, FOGRA52 (PSO uncoated v3 FOGRA52) for uncoated paper
- We will not check for spelling and/or typographical errors
- We will not check for overprint settings
- Comments will be deleted and not printed
- Form field content will be printed
Print templates
Product details
- Four-colour print on the front, reverse blank (4/0)

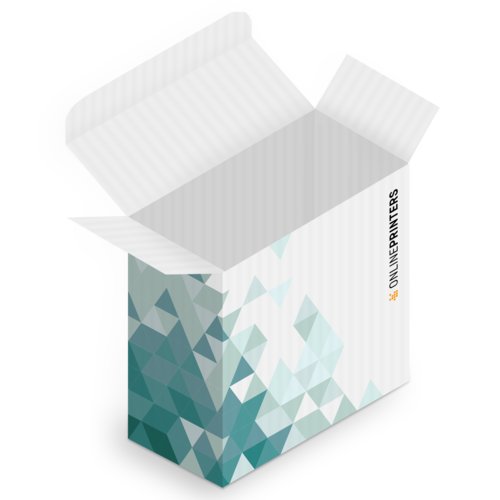

- consisting of a body with adhesive flap on the long edge, a sturdy 1-2-3 bottom and a top tuck flap at the lid

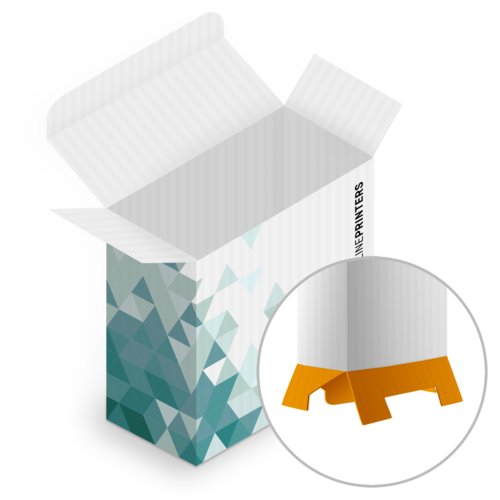

- secure bottom closure thanks to bottom flaps that interlock when setting up the box
- The 1-2-3 bottom makes the box particularly strong and ideal to package heavy products.
- easy to open and close again thanks to top tuck flap
- The top tuck flap has one tuck flap and two dust flaps.
- To close the box, first fold in both dust flaps and then the tuck flap.
- design: FEFCO 0215
- corrugated cardboard is primarily made of waste paper – lower consumption of resources, energy and water
- 100 % recyclable and eco-friendly
- resistant to humidity and temperature fluctuations thanks to high-quality cardboard
- glued: dots along the long seam of the body
- delivery: glued and flat
- Please observe the data sheet.
