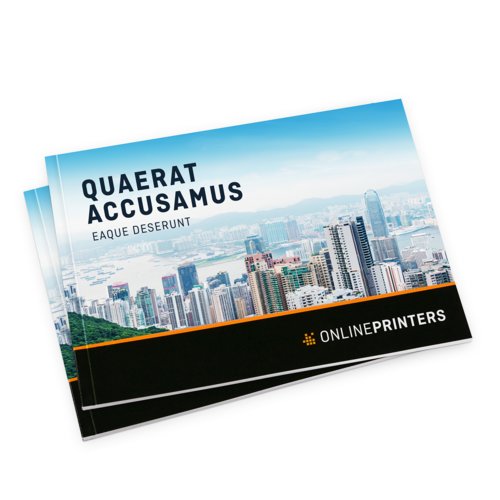

Artwork information Catalogues, adhesive-bound, A5, landscape
- Trimmed size (closed): 21 x 14,8 cm
- please pay attention to the following aspects when creating the artwork for catalogues:

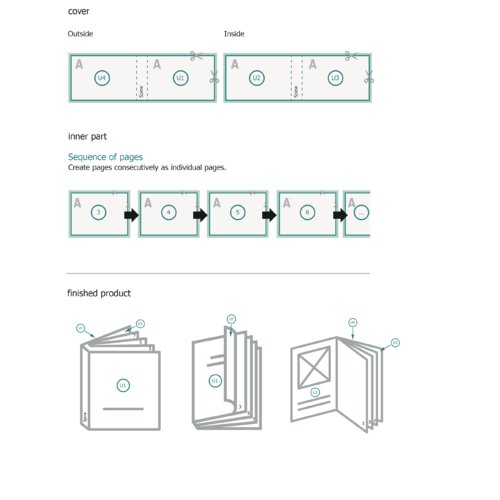

- page layout, inner section: please export as a PDF file with consecutive single pages
- page layout, cover: set up and export as spread (including the spine width)
- Spot finish cover: Please observe our requirements for the print files
- special colours should be created as separate colour swatches (e.g HKS42) in the artwork file
- Resolution: 300 dpi
- Include a surrounding trim of 2 mm, important information should be at least 5 mm from the edge of the final format size
- Fonts must be completely imbedded or converted to curves
- colour mode: CMYK, FOGRA51 (PSO coated v3) for coated paper, FOGRA52 (PSO uncoated v3 FOGRA52) for uncoated paper
- Maximum colour application of 300 %
- We will not check for spelling and/or typographical errors
- We will not check for overprint settings
- Transparencies created with CorelDRAW must be reduced
- Comments will be deleted and not printed
- Form field content will be printed
Product details
- Colouring: printable in one-colour on both sides, four colours or five colours, and in spot colours
- additional options:
- control copy: a non-colour-accurate print for the visual inspection of the sequence of pages, margins and positioning of pages
- colour proof front page: a colour-accurate, digital print of the front page according to ISO 12647-2
- will be shipped to the specified invoice address

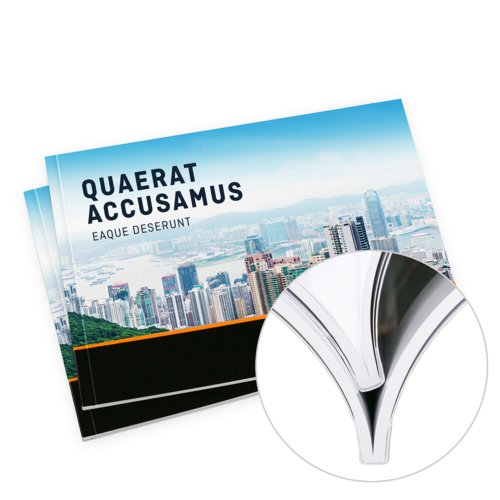

- the position of the adhesive binding depends on the reading direction and the layout orientation
- the position of the punched holes depends on the reading direction and the layout orientation
- Note: The optional punch holes are in accordance with ISO 838.
- printed products on recycled paper are carbon neutral at no extra cost – learn more
