Catalogues, adhesive-bound, Art-Size, portrait

Artwork information Catalogues, adhesive-bound, Art-Size, portrait

Trimmed size (closed): 21 x 28 cm
please pay attention to the following aspects when creating the artwork for catalogues:

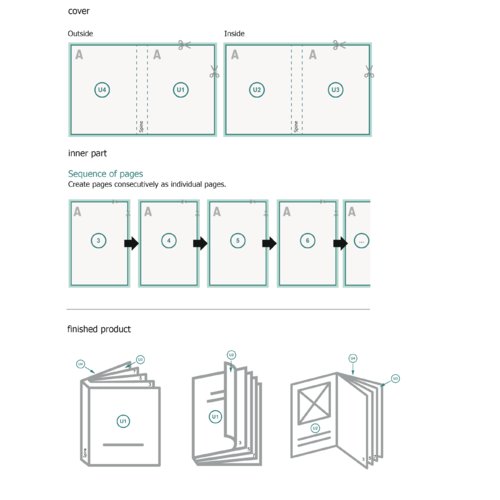

- page layout, inner section: please export as a PDF file with consecutive single pages
- page layout, cover: set up and export as spread (including the spine width)
- Spot finish cover: Please observe our requirements for the print files
- special colours should be created as separate colour swatches (e.g HKS42) in the artwork file
Resolution: 300 dpi
Include a surrounding trim of 2 mm, important information should be at least 5 mm from the edge of the final format size
Fonts must be completely imbedded or converted to curves
colour mode: CMYK, FOGRA51 (PSO coated v3) for coated paper, FOGRA52 (PSO uncoated v3 FOGRA52) for uncoated paper
Maximum colour application of 300 %
We will not check for spelling and/or typographical errors
We will not check for overprint settings
Transparencies created with CorelDRAW must be reduced
Comments will be deleted and not printed
Form field content will be printed

Artwork information

Colouring: printable in one-colour on both sides, four colours or five colours, and in spot colours
additional options:
- control copy: a non-colour-accurate print for the visual inspection of the sequence of pages, margins and positioning of pages
- colour proof front page: a colour-accurate, digital print of the front page according to ISO 12647-2
- will be shipped to the specified invoice address
the position of the adhesive binding depends on the reading direction and the layout orientation
the position of the punched holes depends on the reading direction and the layout orientation
Note: The optional punch holes are in accordance with ISO 838.
printed products on recycled paper are carbon neutral at no extra cost – learn more
