Artwork information Straight tuck end boxes
- free format selection

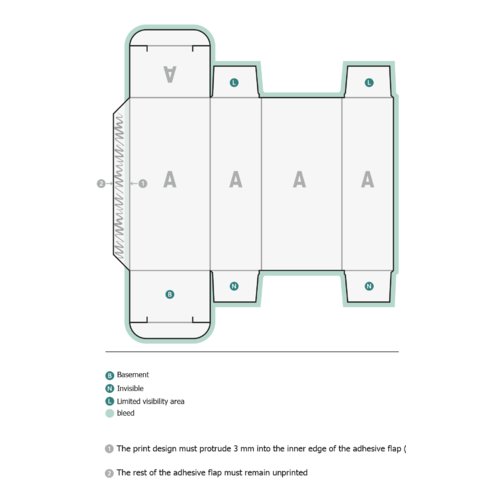

- Special requirements for creating the artwork:
- The print design must protrude 3 mm into the inner edge of the adhesive flap (overfill); the rest of the adhesive flap must remain unprinted.
- black elements must be created with 100 % black only (e.g. barcodes such as EAN, QR-codes, text etc.)
- Include a surrounding trim of 3 mm, important information should be at least 4 mm from the edge of the final format size
- Resolution: 300 dpi
- Fonts must be completely imbedded or converted to curves
- colour mode: CMYK, FOGRA51 (PSO coated v3) for coated paper, FOGRA52 (PSO uncoated v3 FOGRA52) for uncoated paper
- We will not check for spelling and/or typographical errors
- We will not check for overprint settings
- Comments will be deleted and not printed
- Form field content will be printed
Print templates

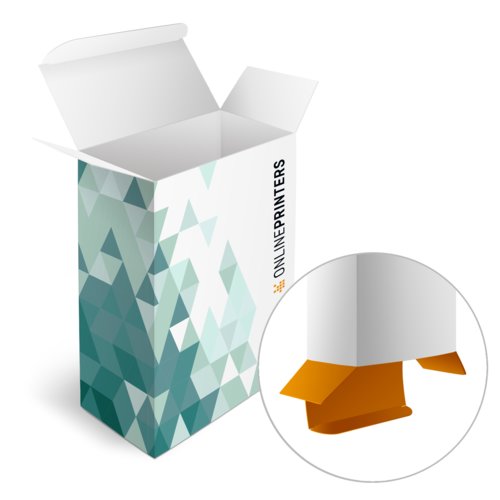

Product details
- Four-colour print on the front, reverse blank (4/0)
- The body of the box is glued; the top and bottom tuck flaps are on the same side.
- standard: ECMA A2320 / A20.20.01.01
- easy to open and close again thanks to tuck flaps
- easy to fill
- easy to stack and therefore ideal for transport and presentation
- The flaps at the bottom and top each have one tuck flap and two dust flaps.
- To close the box, first fold in both dust flaps and then the tuck flap.
- The tuck flaps at the bottom and top fold in the same direction.
- all-over printed as information and/or advertising space
- delivery: glued and flat
- Please observe the data sheet.
